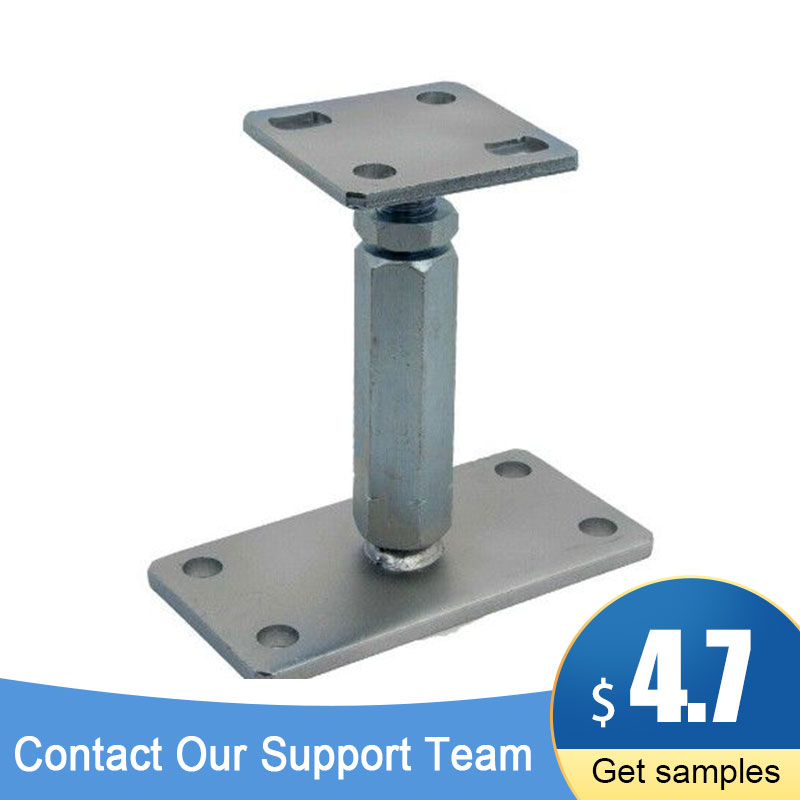

Industrial Base Support Leg

• The support designed with sturdy welded construction for reliable support and durability.

• The designed with screw fixing item prevent the tube slipped, easy installation.

• The pipe holder bracket is made of solid and thicken steel to ensure the stability, durability and reliability, not easy to rust.

• The support is designed for installing a fixed scaffold structure on a level flat surface.

Heavy duty steel pedestals are designed to be used on some All Steel and Concrete Filled Systems.

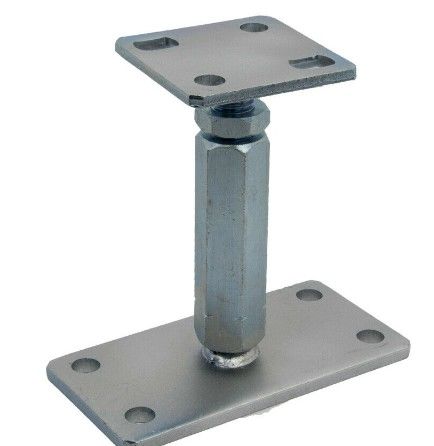

This is a two-part assembly consisting of a base and head. The base is a flat plate welded to a square tube.  The head has an all-thread rod welded to a flat plate with 4 holes. The all-thread rod is inserted into the tube and the height is adjusted with a locking nut.

Pedestals are available in several different sizes.      Measure from the top of your floor panel to the slab for the correct pedestal height.

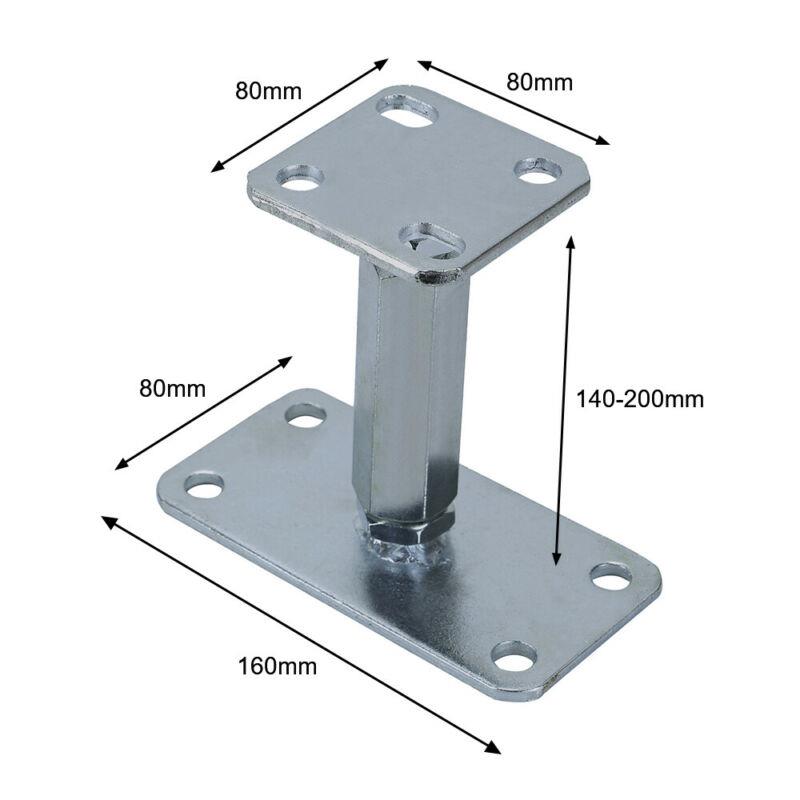

Base plate size: 160×80mm

Thickness of base plate material: 8mm

Bearing plate size: 80×80mm

Bearing plate material thickness: 6 mm

Number of holes in the support plate: 2 holes: diameter of 13mm and 2 holes of 13 x 20mm

Number of holes in the bottom plate: 4 diameter 13mm

Minimum height: 140mm

Maximum height: 195mm (nut 2mm thread safety)

Height adjustable by M20 left/right thread, even after installation.

Lock nut SW30 with mounting for locking adjustment height.

Minimum height: 140mm

Maximum height: 195mm (nut 2mm thread safety)

Material: galvanized steel

Q1.   Are you trading company or manufacturer ?

A: We are the manufacturer for Hardware fittings more than 23 years.   And our factory is located in Jiangsu China.   We would very welcome if you would like to visit our factory.

Q2.   How long is your delivery time?

A:Generally it is 5-10 days if the goods are in stock.   Or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q3.   Do you provide samples ?   Is it free or extra ?

A: Yes, we could offer the sample but not for free and do not pay the cost of freight, if you place an officical order later on, we can refund the sample fee to you.

Q4.   How can we guarantee quality?

 A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q5.    What can you buy from us?

A: Furniture hardware, kitchen hardware,ladder hardware, engineering hardware.  Such as hanger, corner code, ladder lock, ladder aluminum bracket, table leg chair leg and so on.

If any interests, please give me a message for more details, thank you!!!
